产品标题：自动天花板封边机

产品别名：封边机、天花板封边机

产品型号：LTDN652506

工作功率：3KW

工作电压：220V

封边速度：30片/分钟

尺寸：5100*750*800mm

形状：Z字型

【Automatic Edge Banding Machine 】GENERAL INFORMATIONS

Name: Automatic Edge Banding Machine for Gypsum Ceiling

Another Name: Edge Banding Machine

Brand Name: LUOTAIDINA

Minimum Order: 1 set

Driven Type: electric

Condition: brand new

Weight: 560kg

Voltage: 380V

Power: 4kw

Certification: CE

Model:LTDN652506

Place of Origin: Linyi China(Mainland)

Minimum Order: 1 set

Rated Power:2.5KW

Speed:30 pieces/min

Size: 5100*750*800mm

Weight: 470Kg

Shape: Z series

Payment term: T/T,L/C

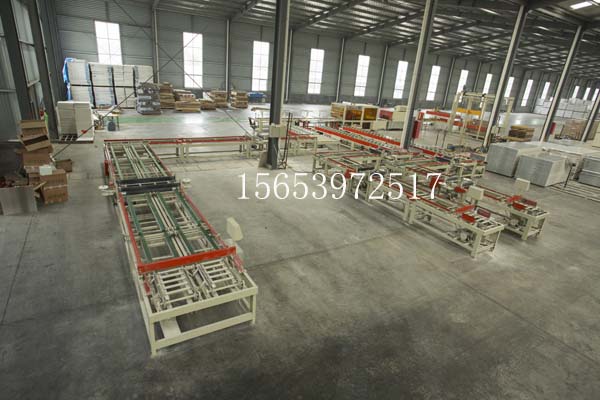

Automatic Edge Banding Machine is used to seal the four edges of gypsum laminated ceiling.

Specific working process is as follow:

1. Boards feeding. There is a baffle plate. The space beneath plate only allow one board to

pass.(Note: if connected with cutting machine, one worker is saved here.)

2. First banding. Two edges are banded. There are special blades for cutting adhesive tape.

The distance of two boards are close , so tape wasting is avoided.

3. Changing direction. When one board goes forth and reaches the turning point, the supporting

frame will go down( there is an electromagnet ), then the board falls on the right- driving conveyor belt.

4. Second banding. The same as step 2.

5. 8 /10 pieces ceiling board are piled.(Note: if connected with automatic packing machine, one

worker is saved here.)

* The whole process is controlled by PLC

*All parameters could be set by PLC. Such as how many pieces board can be stacked as a pile, make an

action of moving,feeding, turning etc.

* There are 10 detectors distributed over this machine to ensure the effective operation and keep the

machinery system getting along well.

【Automatic Edge Banding Machine 】APPLICATION

Suitable for all kinds of sheets banding. This sealing machine is designed for gypsum ceiling .

【Automatic Edge Banding Machine 】PERFORMANCE FEATURE

1.when sealing, the distance between two boards is about 2 cm. It can effectively reduce tape- wasting

and make products look nice.

2. With many detectors, the whole machine will stop when an error is found. It will reduce damage to

products. The transfer speed of each part is adjustable in order to guarantee the stability and smooth

of the whole edge banding process.

3.This machine is easy to operate. Workers can be trained well in a short time.

4.Can replace manual work.
